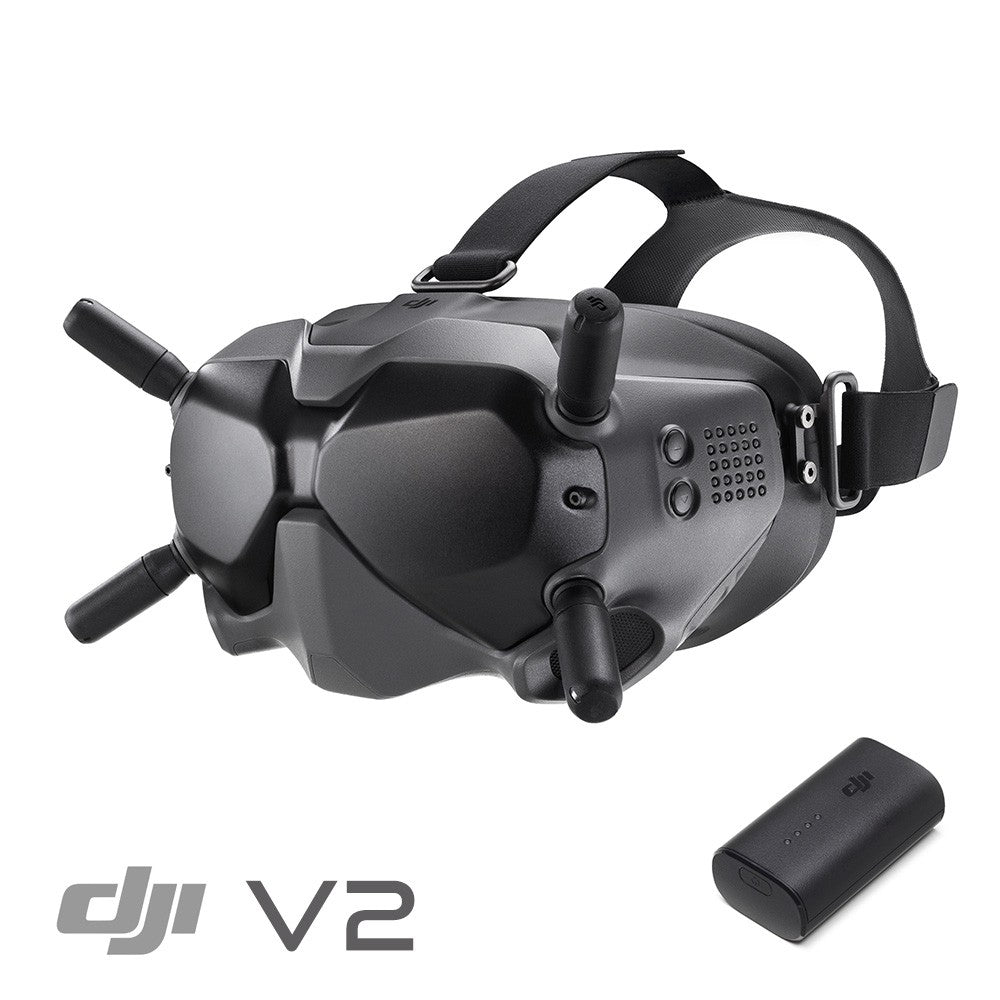

The DJI FPV Goggles V2 with DJI O3 image transmission features high definition, low latency, long-distance transmission, and strong anti-interference capabilities. The DJI FPV Goggles Battery in the box supports up to 110 minutes of flight when fully charged.
In the box:
DJI FPV Goggles V2 (inc. foam padding) ×1
DJI Goggle Battery x1
DJI FPV Goggles Power Cable (USB-C) ×1
DJI FPV Goggles Antenna (Dual Band) ×4
Headband ×1
USB-C cable ×1
Sleeve ×1
Specifications:
DJI FPV Goggles V2
Weight: Approx. 420 g (headband and antennas included)
Dimensions: 184×122×110 mm (antennas excluded)
202×126×110 mm (antennas included)
Screen Size: 2-inches (×2)
Screen Refresh Rate: 144 Hz
Communication Frequency: 2.400-2.4835 GHz
5.725-5.850 GHz
Transmitter Power (EIRP): 2.400-2.4835 GHz
FCC: ≤ 28.5 dBm
CE: ≤ 20 dBm
SRRC: ≤ 20 dBm
MIC: ≤ 20 dBm
5.725-5.850 GHz
FCC: ≤ 31.5 dBm
CE: ≤ 14 dBm
SRRC: ≤ 19 dBm
Communication Bandwidth: 40 MHz (Max.)
Live View Mode: Low-Latency Mode: 810p/120fps ≤ 28ms*
High-Quality Mode: 810p/60fps ≤ 40ms*
* A 150° FOV is available when shooting at 50 or 100 fps. For other frame rates, the FOV will be 142°."
Max Video Bitrate: 50 Mbps
Transmission Range: 10 km (FCC), 6 km (CE), 6 km (SRRC), 6 km (MIC)
Video Format: MP4 (Video format: H.264)
Supported Video and Audio Playback Formats: MP4, MOV, MKV (Video format: H.264; Audio format: AAC-LC, AAC-HE, AC-3, MP3）
Operating Temperature: 0° to 40° C (32° to 104° F)
Power Input: Dedicated DJI Goggles batteries or other 11.1.-25.2 V batteries.
FOV: 30° to 54°; Image size: 50-100%
Interpupillary Distance Range: 58-70 mm
Supported microSD: Cards microSD (up to 256 GB)
DJI FPV Goggles Battery
Capacity: 1800 mAh
Voltage: 9 V (Max.)
Type: LiPo 2S
Energy: 18 Wh
Charging Temperature: 0° to 45° C
Max Charging Power: 10 W
Battery Life: Approx. 110 minutes (measured in an environment of 25°C at maximum brightness level)
Compatibility:
DJI FPV Drone
DJI FPV Remote Controller 2
DJI FPV Air Unit
DJI FPV Remote Controller
